Paraset Radio Power Supply

This forum is all about building and using world war ii spy radio equipment in particular the whaddon mk vii paraset. The paraset is described in some detail in a book secret warfare adapted by david kahn who translated it from the original french book written by pierre lorrain. Paraset in norway.

overhead door closer problems outside wall clocks australia organifi green juice amazon paradigm energy sdn bhd vacancy oracal 651 vinyl car wrap oro lampada kartell bourgie overhead door odyssey 1000 user manual peel and stick floor tiles for kitchen

The Paraset Spy Radio With A Regenerative Receiver Covered 3 0 Mhz 7 6m Mhz In One Band The Output Power Was Approximately 4 5 Watts

Pin On Radios Boatanchors Antennas

Paraset Ita

Paraset 1942 Replica Spy Radio Receiving On The 80m Ham Band Youtube

Power Supply For Mk Vii Www Paraset Nl

The Paraset Project Norwegian Style

Please communicate in english.

Paraset radio power supply.

There is also a nice all brass key connected to the rig out of the photo to the left. Probably an early version. This 6l6 puts out about 7 8w with 58ma anode current. One of my ham radio buddies calls this the paraset mini cooper.

Input to vibrator 2 2a. Drawing from on5lj. Since it s small qrp power and size and operates on two of the current ham bands it seemed ideal for my glow bug project. And with a main power supply.

The paraset would have been our ideal radio. Background i first heard of a paraset when i saw a message on the qrp l reflector announcing an upcoming june 6th paraset d day activity. It has 2 of the 12ba6 tubes for the regen radio and 2 of 12aq5 s for the little cw transmitter. Some differences were made during the war.

The method to wiring this radio was done in stages. It has no screenprint. I started with the power supply and voltage divider lower left of the photo i wanted to test the linear regulator for the 6 3v filaments as well. I tested the power with a breadboard transmitter with nearly the same circuit as the paraset.

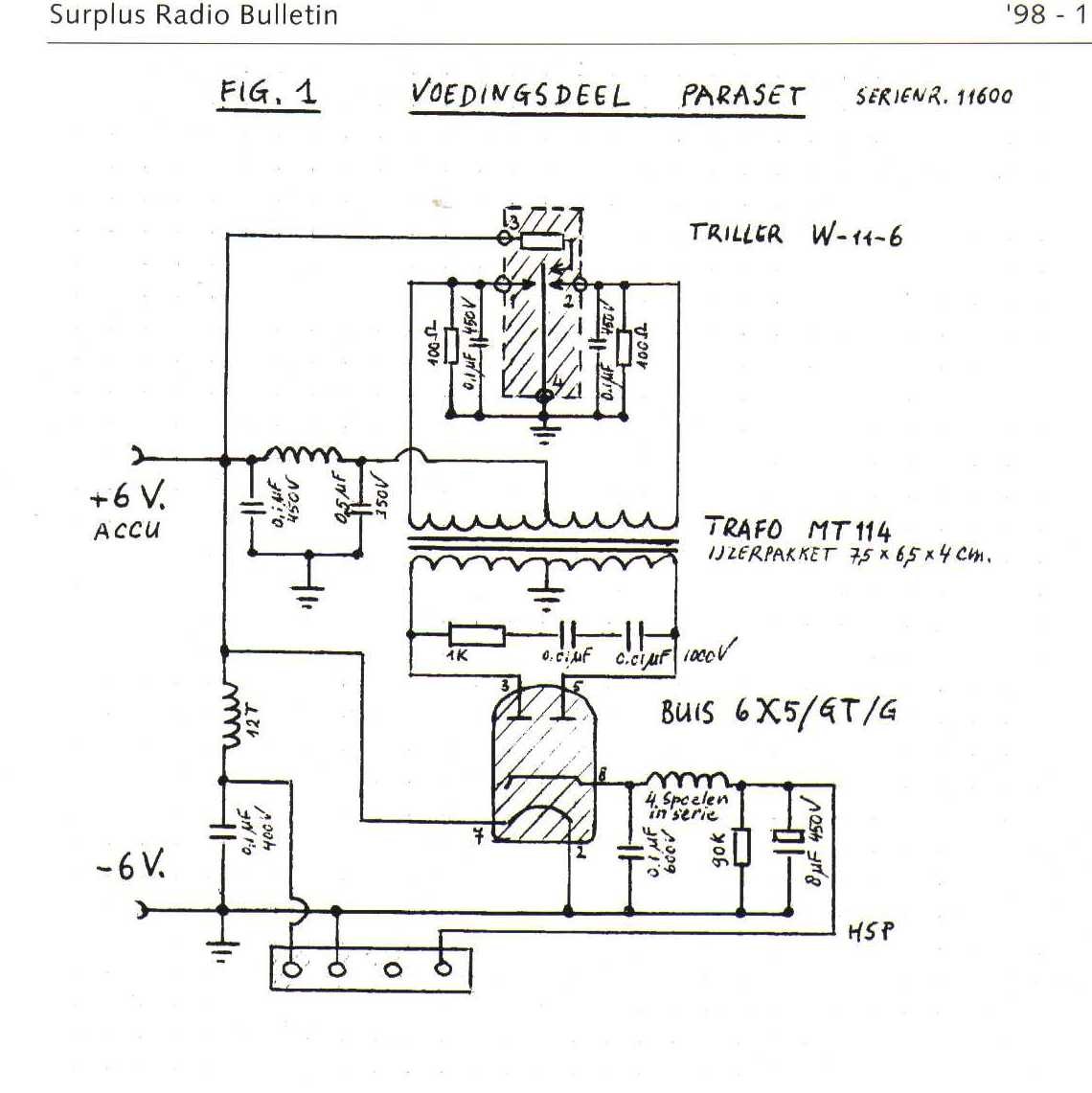

Consisting of transformer rectifier tube 6x5gt and a capacitor. Power supply for mk vii. The power supply is also tested september 15 1953 the power supply is very simple. With a test of the 12a6 the output was about 2 2w 40ma at battery current of 1 5a.

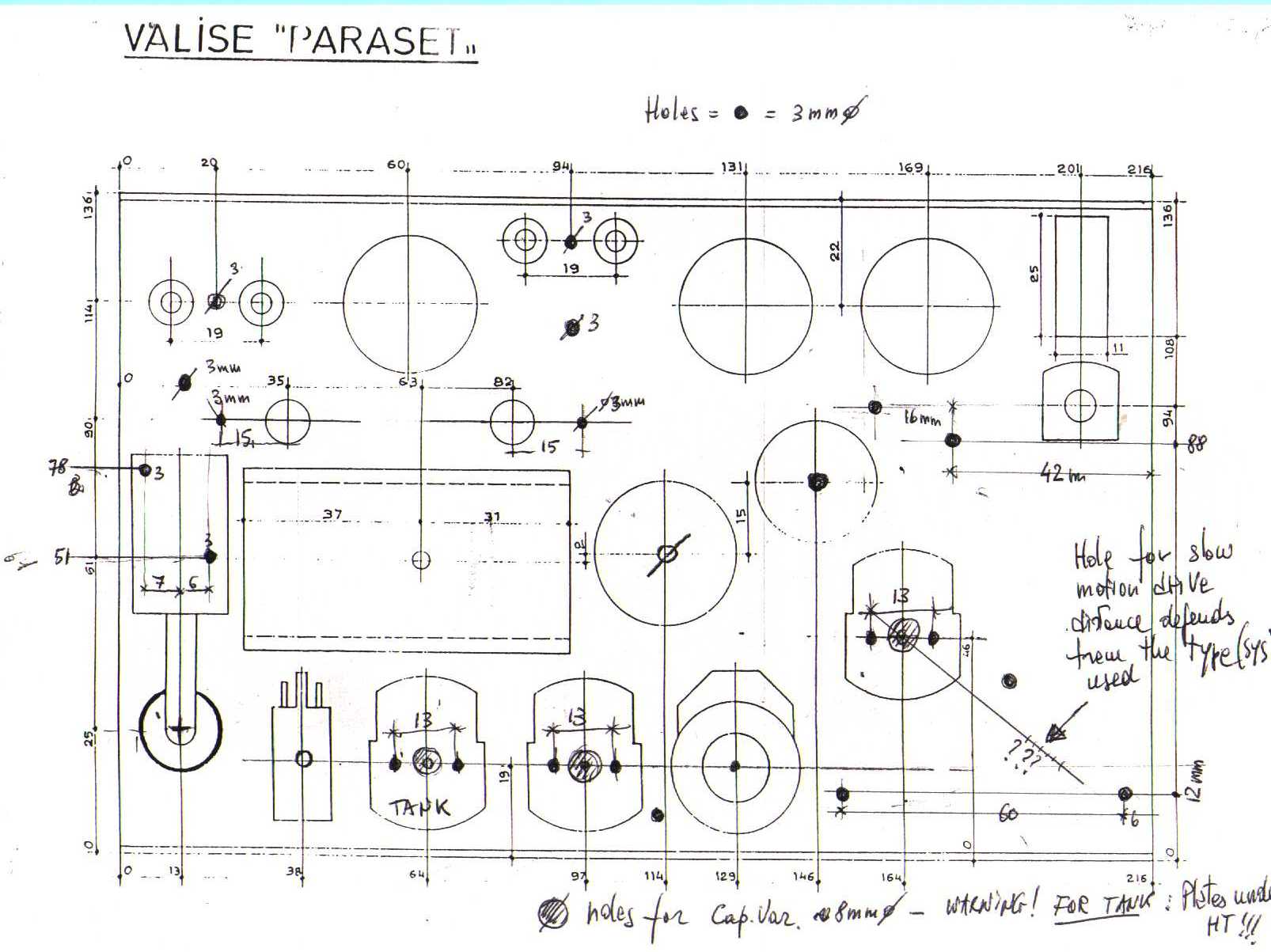

The switch is the 80 40 meter bandswitch. Blueprints from on6wj jos warnier. 4a jpg hd 7a jpg hd 8a jpg hd the power supply is very compact in a great box. I made a power supply for my portable tube radio emerson model 850.

Picture of the norweigean oluf reed olsen s set. Vii also has a 6 vdc power supply included with it which connected to a car battery via large alligator type clips. For other radios separate forums can be set up ask the quartermaster. The transmitter has the paraset style parallel series tuned tank circuit and seems to load well even with a random length wire antenna.

A search for more information soon revealed that the paraset was a small vacuum tube transmitter receiver unit built during wwii in the uk at the whaddon hall headquarters of the secret intelligence service communications unit. With a 12v6 the output was nearly 4 5w 50ma and 1 8a from battery. Paraset schematic from radio communication 1982 pdf on5lj s drawings. What organization used this radio in 1953.

The power supply delivers 6 vac and 350vdc. 12v 24ah battery is used. Orange by musmus http musmus main jp. The only real issue i had with these circuits was the linear regulator would not start with all three tubes.
